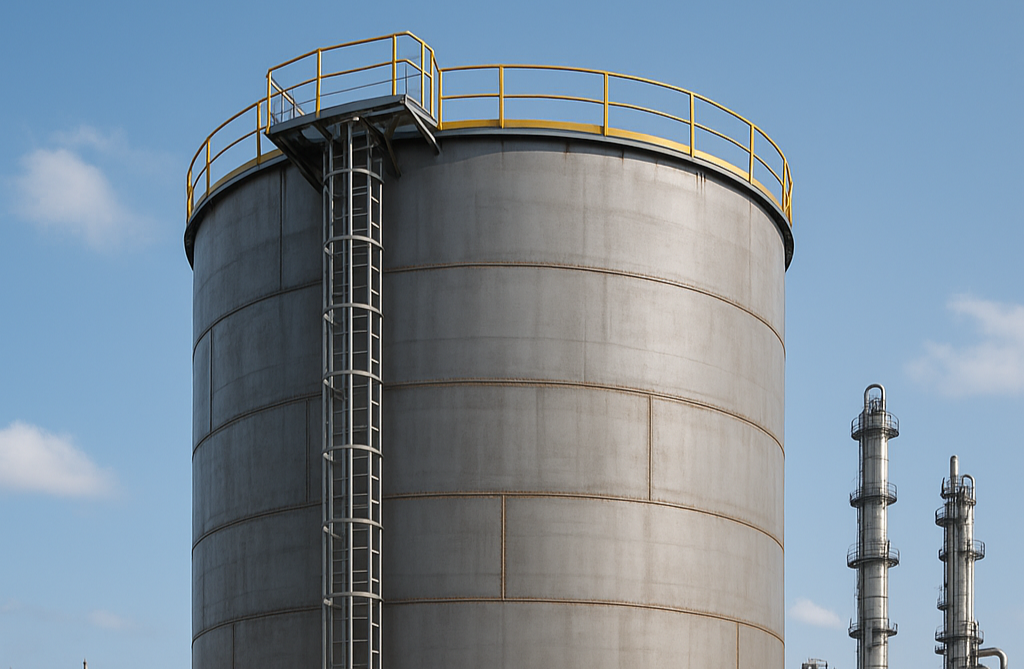

In oil and gas, large welded steel storage tanks are important for holding crude oil, refined products, chemicals, and other critical fluids. To ensure your storage tanks are safe, they must meet strict standards like API 650, established by the American Petroleum Institute for tank design and construction. This standard safeguards reliability across upstream and downstream facilities. Industrial custom metal fabrication makes these tanks possible, with precise processes from material selection and welding to non-destructive testing and commissioning.
Understanding API 650 and Its Purpose
API 650 is an internationally adopted standard that outlines the design, fabrication, erection, and inspection requirements for welded steel tanks storing oil, petroleum products, and similar liquids. Its primary objective is to ensure structural integrity, prevent leaks, and maintain operational safety over decades of service.
In practice, this means tanks must meet strict criteria for allowable stresses, withstand internal and external pressures, and be tested before use. API 650 also includes provisions for pressure testing—typically hydrostatic testing, to confirm that the tank can handle its intended operating conditions without failure.
Regulated Minimum Requirements
One of the strengths of API 650 is its clear definition of minimum requirements for critical tank components. These include:
- Allowable stress values for the shell, roof, and bottom plates.
- Material property factors such as yield strength and toughness.
- Dimensional factors like plate thickness, tank diameter, and shell height.
- Temperature considerations to ensure stability across various operating environments.
By regulating these parameters, API 650 creates a consistent baseline for quality and performance, regardless of where the tank is built or installed.
Temperature Limits for Safe Operation
Operational temperature limits are a critical safety factor in API 650 tank design. Standard-compliant tanks are engineered for temperatures ranging from –40°F to 500°F. Exceeding these limits can compromise the tank’s mechanical properties, potentially leading to cracks, deformation, or catastrophic failure.
These temperature constraints directly influence material selection and welding procedures, especially in facilities that handle cryogenic or high-temperature fluids. Maintaining operations within these parameters is not only a matter of compliance but also a cornerstone of safe facility management.
Selecting the Right Materials
Material selection in industrial tank fabrication requires balancing strength, toughness, and corrosion resistance. API 650 specifies different options depending on the component:
- Shell plates are typically fabricated from carbon steel or low-alloy steel with a maximum of 0.21% carbon content to maintain weldability and toughness.
- Roof and bottom plates allow for a broader range of materials, including stainless steel and aluminum, depending on the stored product and environmental conditions.
The correct choice reduces the risk of corrosion, extends service life, and ensures compatibility with stored substances.
The Role of Impact Testing
In colder climates or applications involving low operating temperatures, impact testing becomes essential. API 650 requires these tests when the Minimum Design Metal Temperature (MDMT) is below certain thresholds.
Impact tests measure a material’s ability to absorb energy without fracturing under sudden stress. Passing these tests confirms that the tank’s steel will remain ductile and resistant to brittle failure in low-temperature conditions.
Engineering and Design Calculations
The design process for an API 650 tank involves detailed calculations to ensure every component meets structural and operational requirements. This includes:
- Shell thickness based on tank height, diameter, and internal pressure.
- Bottom plate design, including annular plates in high-stress areas.
- Roof plate thickness for self-supporting or supported designs.
- Nozzle sizes and placement to facilitate safe filling, emptying, and maintenance operations.
These calculations ensure the finished tank can endure years of service without structural compromise.

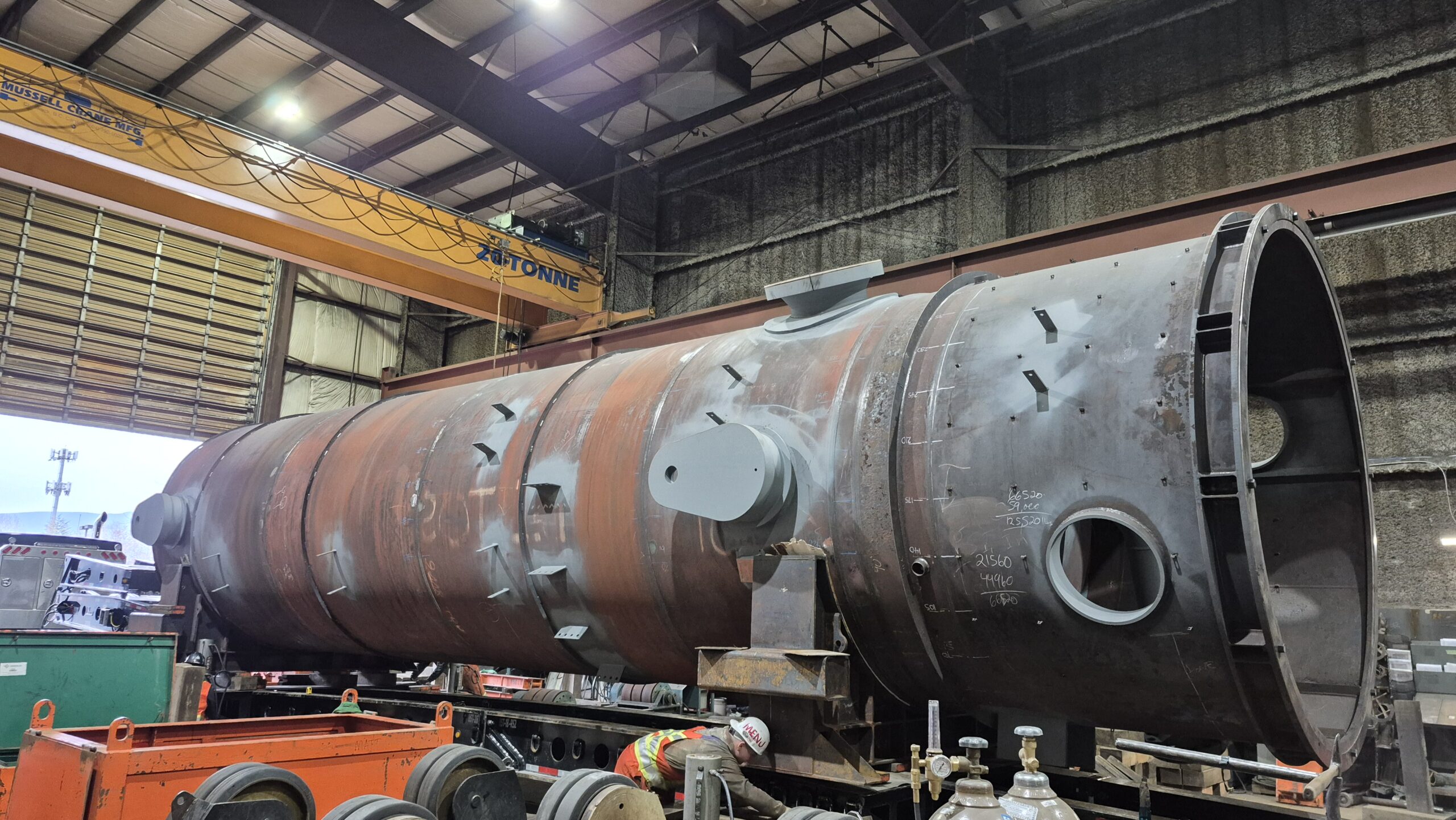

Fabrication, Erection, and Testing Procedures
Industrial metal fabrication under API 650 involves a series of highly controlled processes:
- Welding requirements define joint designs, filler materials, and acceptable defect tolerances.
- Welder qualifications ensure only trained professionals perform critical structural welds.
- Non-destructive testing (NDT) methods such as radiography, ultrasonic testing, magnetic particle inspection, and liquid penetrant testing verify weld integrity without damaging the structure.
- Leak testing, including hydrostatic, pneumatic, or vacuum methods, confirms the tank’s ability to hold liquids safely.
- Erection guidelines cover foundation preparation, elevation adjustments, and anchoring to resist wind and seismic forces.
By integrating these steps into a disciplined fabrication workflow, companies can deliver tanks that meet both API 650 standards and client-specific requirements.
Frequently Asked Questions About API 650
Is API 650 mandatory?
Not all regions require it by law, but it is widely accepted worldwide as the benchmark for welded storage tanks in oil, gas, and chemical applications.
What happens if a tank is non-compliant?
Failure to meet API 650 can result in safety hazards, legal penalties, higher maintenance costs, and reduced asset lifespan.
Is API 650 used internationally?
Yes. The standard is recognized globally and is frequently updated to reflect advances in materials, design, and safety practices.
Training and Skill Development
Proper training is critical to maintaining API 650 compliance throughout the tank’s life cycle. Engineers, inspectors, and welders benefit from courses covering API 650 and related standards like API 653, which governs tank inspection, repair, and alteration.
How can compliance be verified?
Through certified inspections, material documentation, NDT reports, and pressure test results that align with the standard’s requirements.
